GPS SUNHANG

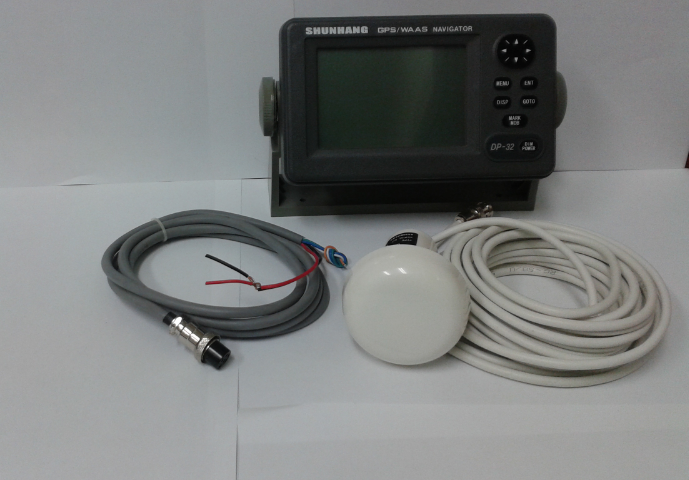

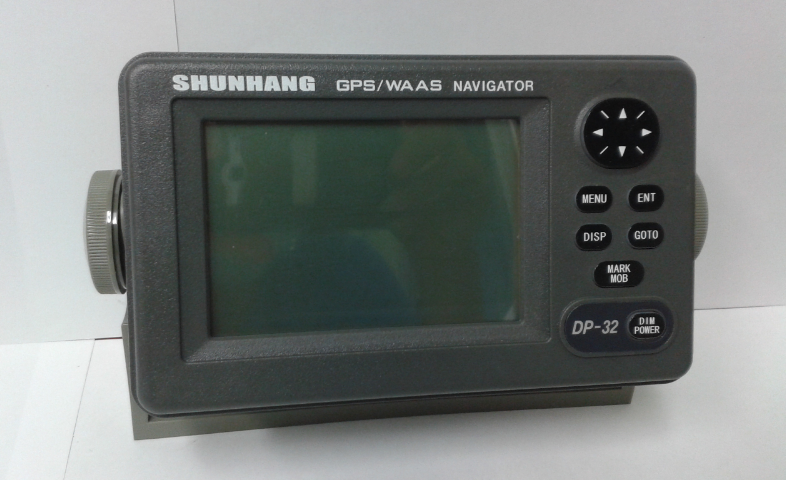

GPS/WAAS NAVIGATOR DP-32

IMPORTANT  NOTICES

General

-          This manual has been authored with simplified grammar, to meet the needs of international users.

-          The operator of this equipment must read and follow the descriptions in this manual. Wrong operation or maintenance can cancel the warranty or cause injury

-          Do not copy any part of this manual without written permission from SUNHANG.

-          If this manual is lost or worn, contact your dealer about replacement.

-          The example screens (or illustrations) shown in this manual can be different from the screens you see on your display. The screens you see depend on your system configuration and equipment settings.

-          Save this manual for future reference.

-          Any modification of the equipment (including software)  persons  not authorized by SUNHANG will cancel the warranty.

-          All brand and product names are trademarks, registered trademark or service marks of their respective holders.

SAFETY  INSTRUCTIONS

Safety Instructions for the Operator

WARNUNG

-          Do not open the equipment. Only qualified personnel should work inside the equipment.

-          Do not  disassemble or modify the equipment.  Fire, electrical shock or serious injury can result.

-          Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire Continued use of the equipment can cause fire or electrical shock. Contact a SUNHANG agent for service.

-          Use the proper fuse Use of a wrong fuse can damage the equipment or cause fire.

NOTICE

Be sure the power supply is compatible with the equipment. Incorrect power supply may cause the equipment to overheat.

The useable temperature range for the antenna unit is -25 ̊C to 70 ̊C;  -15 ̊C to 55 ̊C for the display unit.

Use of the equipment out of those ranges may damage the equipment.

Safety Instructions for the Installer

WARING

Do not open cover unless totally familiar with electrical circuits and service manual Improper handling can result in electrical shock.

Turn off the power at the switchboard before beginning the installation.  Fire or electrical shock can result if the power is left on.

Be sure that the power supply is compatible with the voltage rating of the equipment. Connection of an incorrect power supply can cause fire or equipment damage. The voltage rating of the equipment appears on the label above the power connector.

Use the proper fuse. Use of a wrong fuse can damage the equipment or cause fire.

NOTICE

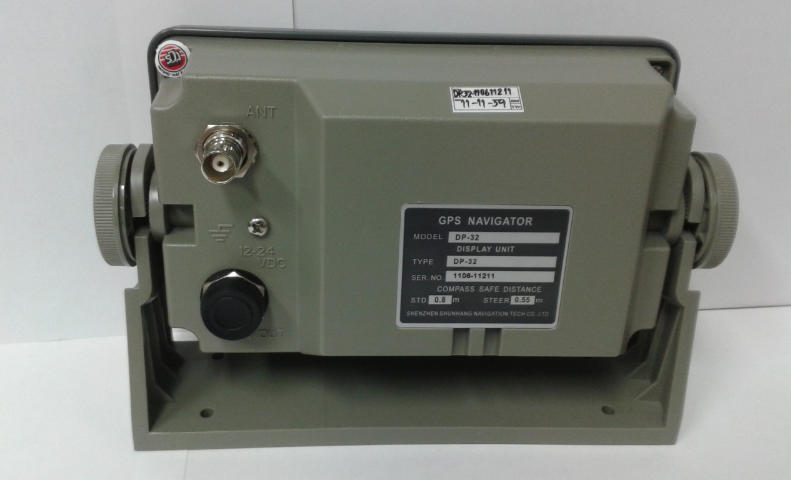

Observe the following compass safe distances to prevent interference to a magnetic compass:

SUNHANG

SPECIFICATIONS OF GPS SUNHANG DP-32

1.       GPS

Receiver Channels

GPS                                                                        12channels parallel, 12 satellites tracking

WAAS                                                                   1 channel

Rx Frequency                                                    1575.42 MHz

Rx Code                                                               C/A code, WAAS

Position Accuracy

GPS                                                                        10m (95% of the time, HDOP ≤ 4)

DGPS                                                                     5m (95% of the time, external data required)

WAAS                                                                   3m (95% of the time)

Tracking Velocity                                              999 kt

Position - Fixing Time                                     Warm start: 12s approx., Cold start: 90s approx.

Position Update interval                               1 s

Beacon Receiver

Frequency Range                                             283.5 kHz to 325.5 kHz

MAK Rate                                                            50, 100, 200 bps (Auto/ Manual selectable)

2.       RECEIVER

Display System                                                  Monochrome LCD, 95(W)x 60(H)mm, 120x64dote

Display Mode                                                    Plotter, Steering, Highway, NAV data, Destination,                                                                                          User display

Projection                                                           Mercator

Memory Capacity                                            Track: 1000pts, Waypoint: 999pts w/ comment

Storage Capacity                                              50 routes w/30 waypoint each

Alarms                                                                  Arrival and anchor watch, Cross track error,

                                                                                Odometer alarm, Ship’s speed in and out alarms

                                                                                Time alarm,  Trip alarm, WAAS/DGPS alarm

Display Scale

Plotter Display                                                   0.02/0.05/0.1/0.2/0.5/1/2/5/10/20/40/80/160/320nm

Highway Display                                               0.2/0.4/0.8/1/2/4/8/16nm

3.       INTERFACE

Data 1                                                                   Current  Loop

Output Data:                                                      NMEA0183 Ver 4.5/2.0/2.1 selected

                                                                                NMEA-REM1: GLL, GGA, VTG,ZDA,RMC,RMB
