TENDA TEG5310P-8-150W L3 Managed PoE Switch 10 Giagbit Ports
เพิ่มเมื่อ: 2021-01-04 14:56:00.0
แก้ไขล่าสุด: 2023-11-10 14:11:04.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TEG5310P-8-150W L3 Managed PoE Switch 10 Giagbit Ports ( 8 Gigabit PoE Port + 1 Gigabit RJ45 + 1 SFP Uplink) (สินค้ารับประกัน 5 ปี)
TENDA TEG5310P-8-150W
TEG5310P-8-150W L3 Managed PoE Switch 10 Giagbit Ports ( 8 Gigabit PoE Port + 1 Gigabit RJ45 + 1 SFP Uplink)

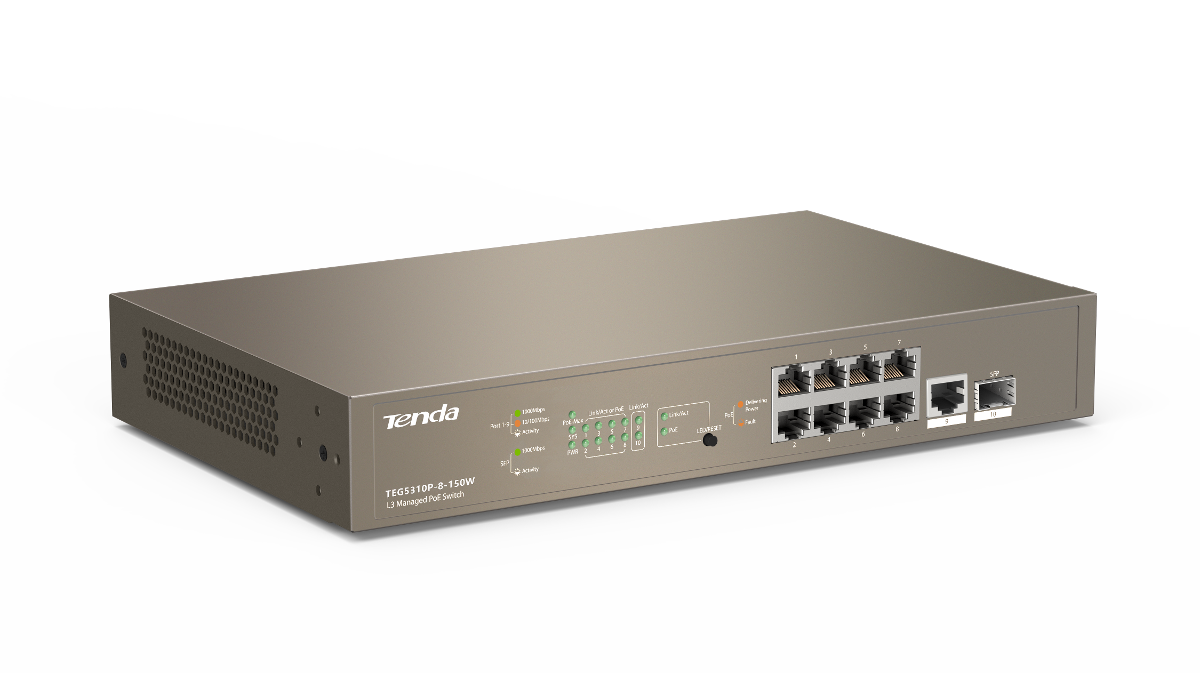

TEG5310P-8-150W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 9 10/100/1000 Mbps Base-T Ethernet ports and 1 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 130 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Network standard :
- IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED :
- One Link/Act or PoE LED indicator for each port
- One Link/One Link/Act mode converting LED indicator for each device
- One PoE mode converting LED indicator for each device
- One PoE Max LED indicator for each device
- One Power LED indicator for each device
- One SYS LED indicator for each device
Interface :
- 8 x 10/100/1000 Base-T Ethernet ports (Data/Power)
- 1 x 10/100/1000 Base-T Ethernet ports (Data)
- 1 x 1000 Base-X SFP ports (Data)
Fan Quantity :
- NA
PoE budget :
- Lightning protection for ports: ≥6kV (common mode)
- Lightning protection for power: ≥6kV (common mode), ≥4kV (differential mode)
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding Mode :
- Store-and-forward
Switching Capacity :
- 20Gbps
Packet Forwarding Rate :
- 14.9Mpps
Packet forwarding rate :
- 12Mb
MAC Address Table :
- 16K
Jumbo Frame :
- 10K
Buffer :
- Support
PoE power supply :
- Single port: AF: 15.4W, AT: 30W
- Whole device: 130W
Input Voltage :
- 100-240V AC 50/60Hz
Power Consumption :
- Full load: ＜160W
- Empty load: ＜12W
Dimension :
- 294 mm x 179.6 mm x 44 mm(L*W*H)
VSWR :
- Desktop mounting
- Rack mounting (13" 1U)
- Wall mounting
Energy Efficient :
- Support
Environment :
- Operating temperature: 0°C - 40℃
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%)RH, non-condensing
- Storage humidity: (5% - 90%)RH, non-condensing
Certification :
- CCC、FCC、CE、RoHS
L3 Features :
- VLAN-based routing
- IPv4 static routing adding
- Static ARP adding/deleting
- ARP aging time configuration
Optical Wavelength :
- Supports port PoE configuration and power supply with priority
- Supports PoE over-temperature protection
- Supports PoE scheduled management
- Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status)
Security features :
- ARP receiving limit
- Unknown MAC address discard
- DoS attack defense
- 802.1x security authentication
- Radius security authentication
VLAN :
- IEEE 802.1Q VLAN
- VLAN Layer-3 interfaces
- Supports three port modes: Access, Trunk and Hybrid
DHCP :
- DHCP Server
- DHCP Relay
- DHCP Snooping
- Supports Option 82 policy configuration
Port Aggregation :
- Static aggregation LACP dynamic aggregation
Spanning tree :
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- Supports edge port
- Supports BPDU statistics
Multicast :
- IGMP Snooping V1/V2/V3
- Supports port fast leave
Port Mirroring :
- Supports N: 1 port mirroring
QoS :
- SP (Strict Priority)
- SWRR (Simple Weighted Round Robin)
- WRR (Weighted Round Robin)
- Supports 802.1p port trust mode
- Supports DSCP port trust mode
- Supports a maximum of 8 queue service quality mapping
ACL :
- Supports MAC ACL and IP ACL
Loading and upgrade :
- Supports FTP/TFTP/HTTP upgrade
- Supports configuration import and export
Management and maintenance :
- Supports Telnet
- Supports SNMP V1/V2/V3
- Supports WEB management and maintenance
- Supports Ping/Tracert/Connection Detection
- CPU Monitoring and memory monitoring
- Local visualization management
