TP-LINK TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit

 เพิ่มเมื่อ: 2023-02-16 18:48:51.0
 แก้ไขล่าสุด: 2023-06-23 18:06:14.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch รับประกัน limited lifetime
6990.00 บาท

ส่งอีเมลล์ให้เพื่อน

  TP-LINK TL-SL1226P

TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch รับประกัน limited lifetime

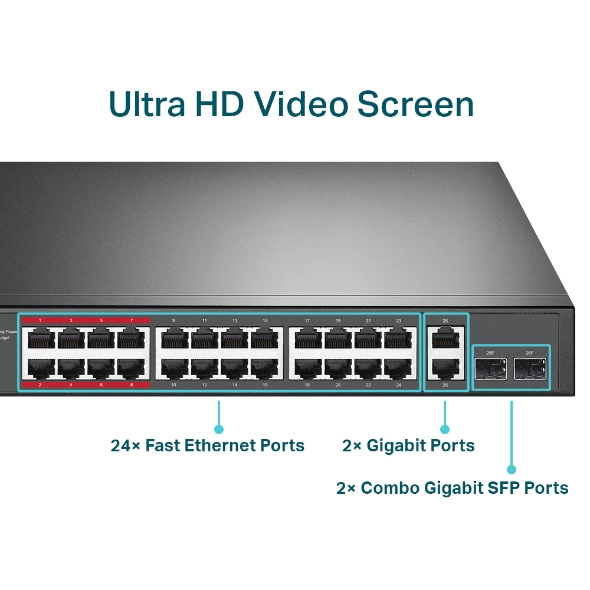

- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

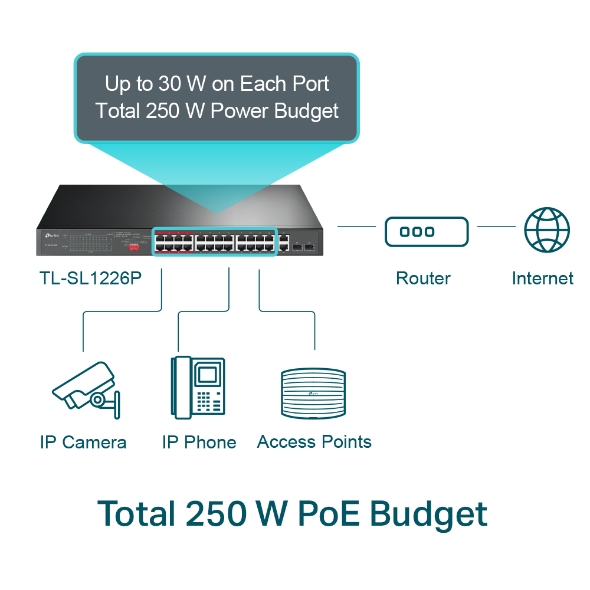

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

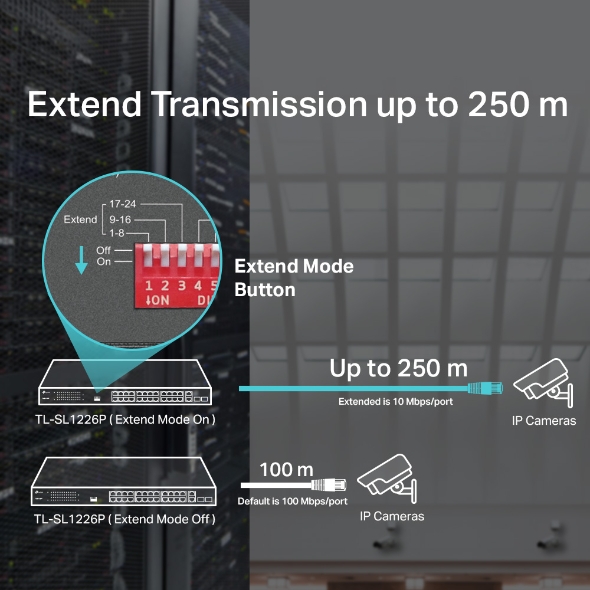

- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play, with no configuration and installation needed



  HARDWARE FEATURES

Interface

- 24× PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 2× Combo Gigabit SFP Slots

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF

Fan Quantity

- 2 Fans

Physical Security Lock

- Yes

Power Supply

- 100-240 VAC, 50/60 Hz

Packet Forwarding Rate

- 6.5472 Mpps

PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Port 1 – Port 24
- PoE Power Budget: 250 W

Mac Address Table

- 8 K

Jumbo Frame

- 10 KB

Switching Capacity

- 8.8 Gbps

Dimensions ( W x D x H )

- 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption

- 18.32 W (220/50 Hz. no PD connected)
- 294 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation

- 62.47 BTU/h (no PD connected)
- 1002.54 BTU/h (with 250 W PD connected)

   SOFTWARE FEATURES

Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode
- Isolation Mode
- PD Detection
- Intelligent Power Supply
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control

Transmission Method

- Store-And-Forward
