D-LINK DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
เพิ่มเมื่อ: 2022-11-17 11:45:04.0
แก้ไขล่าสุด: 2024-02-15 18:30:01.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks

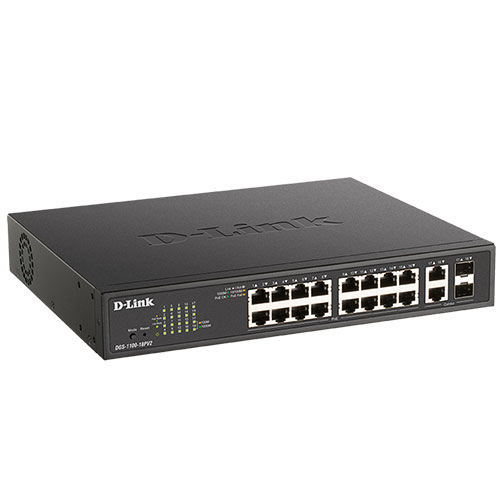

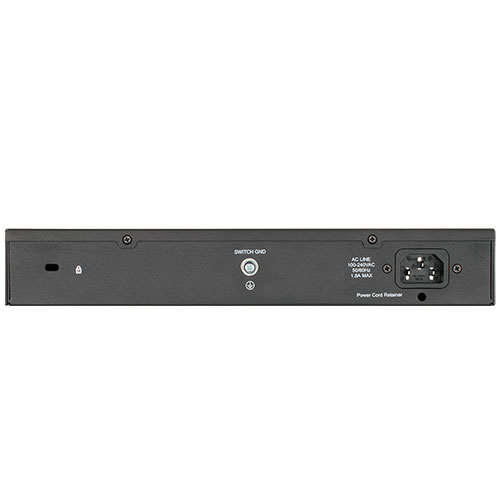

D-LINK DGS-1100-18PV2
DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
• 16 x 10/100/1000BASE-T PoE+ ports
• 2x RJ45/SFP Combo ports
• PoE+ support with up to 30W per port
• 130 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management
Auto MDI/MDIX
• Yes
10/100/1000BASE-T PoE ports (802.3af/at)
• 16
802.3bt 90W Support
• No
10/100/1000BASE-T ports (Including PoE ports)
• 16 + 2 (Combo)
Gigabit SFP ports
• 2 (Combo)
Port-based Bandwidth Control
• Yes
Class of Service (CoS)
• Yes
802.3x Flow Control
• Yes
Store-and-Forwarding
• Yes
Comply with RoHS
• Yes
Energy Efficiency Ethernet (EEE)
• Yes
FAN
• Fixed Fan
Jumbo Frame
• 9,216 bytes
Loopback Detection (LBD)
• Yes
IGMP Snooping
• Yes
802.1AX Link Aggregation
• Yes
802.3ad Link Aggregation
• Yes
SNMP
• Yes
Web-based GUI
• Yes
D-Link Discover Protocol (DDP)
• Yes
D-Link Network Assistant
• Yes
Port Mirroring
• Yes
Cable Diagnostics
• Yes
Switch Capacity
• 36 Gbps
Max. Packet Forwarding Rate
• 26.78 Mpps
Maximum Power Consumption (PoE On)
• 168W
Maximum PoE Budget
• 130 W (30W max. per PoE port)
Rate Limiting
• Yes
Power Input
• AC: 100-240V
Queue Handling
• Yes
Strict Priority Queue (SPQ)
• Yes
Weighted Round Robin (WRR)
• Yes
SSL
• Yes
Broadcast/Multicast/Unicast Storm Control
• Yes
Traffic Segmentation
• Yes
D-Link Safeguard Engine
• Yes
DoS Attack Prevention
• Yes
802.1D Spanning Tree (STP)
• Yes
802.1w Rapid Spanning Tree (RSTP)
• Yes
Dimension
• 280 x 230 x 44mm
Weight
• 2.10kg
Operation Temperature
• -5-50°C
802.1Q VLAN
• Yes
Port-based VLAN
• Yes
Voice VLAN
• Yes
Auto Surveillance VLAN
• Yes
Asymmetric VLAN
• Yes
EMI Certification
• FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety Certification
• cUL, UL, LVD, CB, BSMI
