D-LINK DGS-1100-24P 24-Port PoE Gigabit Smart Managed Switch

จำนวนครั้งที่เปิดดูสินค้า : 4324 | ความคิดเห็น: 0

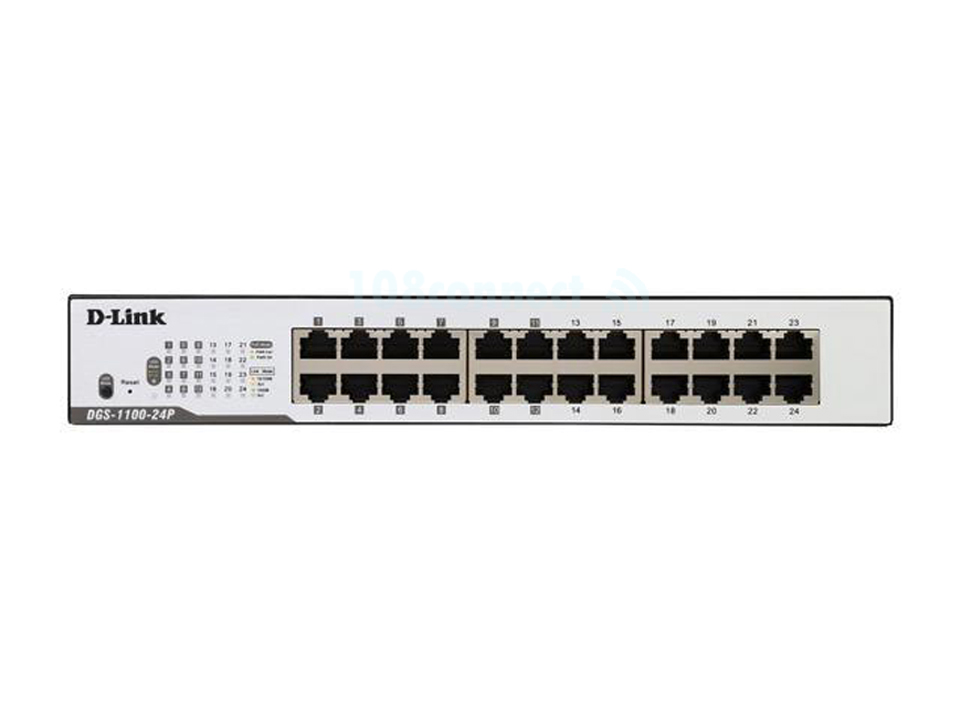

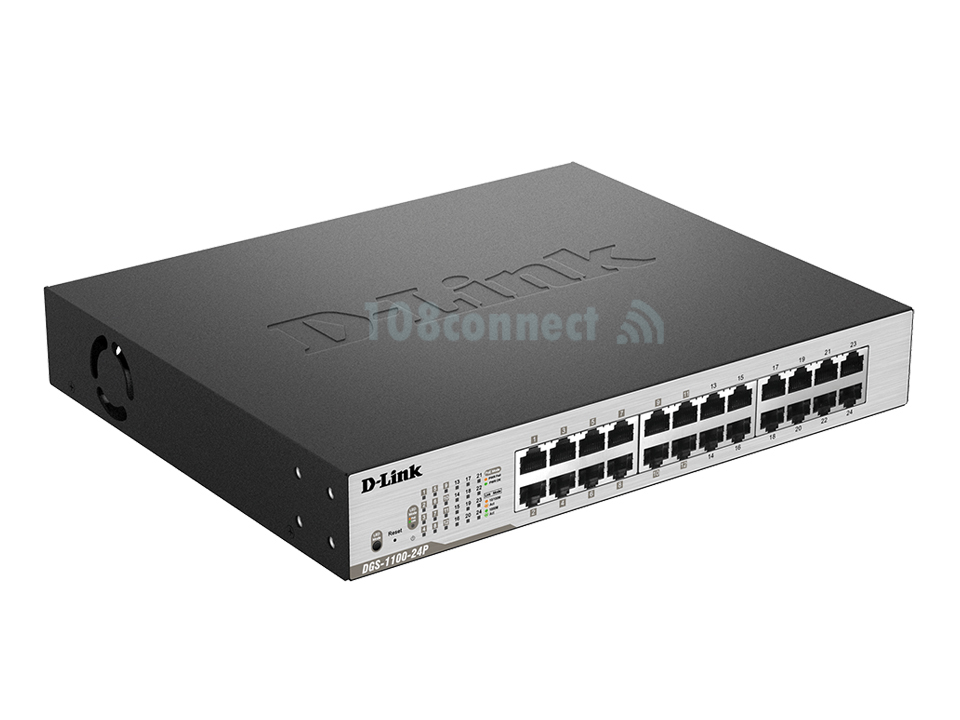

D-LINK DGS-1100-24P 24-Port PoE Gigabit Smart Managed Switch

เพิ่มเมื่อ: 2019-10-16 17:30:17.0

แก้ไขล่าสุด: 2020-01-30 12:01:03.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
DGS-1100-24P 24-Port PoE Gigabit Smart Managed Switch 12 10/100/1000BASE-T PoE ports (สินค้ารับประกันตลอดอายุการใช้งาน)

7900.00 บาท

D-LINK DGS-1100-24P

DGS-1100-24P 24-Port PoE Gigabit Smart Managed Switch 12 10/100/1000BASE-T PoE ports

- 12 10/100/1000BASE-T PoE ports

- 12 10/100/1000BASE-T ports

- 100W PoE power budget

- Supports IEEE 802.3at PoE

- Innovative D-Link Green energy saving features

- Complete web interface for comprehensive switch management

ข้อมูลทั่วไป(General)
Size
- 11-inch Desktop/Rack Mount Size, 1U Height
ช่องแลน (Ports LAN)
24 10/100/1000 Mbps (Gigabit) (Ports 1 to 12 are PoE)
Port Functions
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3ab compliant
- IEEE 802.3af/802.3at (DGS-1100-24P ports 1 to 12 only)
- IEEE 802.3az compliant
- Auto-negotiation
- Auto MDI/MDIX
- IEEE 802.3x Flow Control supports full-duplex mode
- Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
ประสิทธิภาพ (Performance)
Switching Capacity
- 48 Gbps
Maximum Forwarding Rate
- 35.71 Mpps
MAC Address Table Size
- 8K Entries
Packet Buffer
- 512 Kbytes
การจ่ายไฟผ่านสายแลน (PoE)
- PoE Standard
- IEEE 802.3af/ 802.3at
PoE Capable Ports
- Ports 1 to 12
PoE Power Budget
- 100 watts (30 watts max. per PoE port)
- การใช้พลังงาน(Power Consumption)
standby mode
- 12.94 watts
maximum power consumption
- 128.3 watts (PoE on)
- 21.24 watts (PoE off)
Physical
Power Input
- 100 to 240 V AC
- 50 to 60 Hz Internal Power Supply
MTBF
- 563,292 hours
Acoustics
- B1: 44.5 dB(A)
B2: 27.6 dB(A)
Heat Dissipation
- 437.85 BTU/hr
น้ำหนัก (Weight)
- 2.15 kg (4.74 lbs)
ขนาด (Dimensions)
- 280 x 230 x 44 mm (11.02 x 9.05 x 1.73 inches)

Hardware Version

Size

Desktop

Number of Ports

- 8 10/100/1000 Mbps PoE

Port Functions

Auto MDI/MDIX

IEEE 802.3x Flow Control supports fullduplex mode

IEEE 802.3az compliant

Physical
- Various selection of port counts, with or without PoE and fiber support
- Fanless design for silent operation (non-PoE models only) Green Technology
- Link Status detection
- IEEE 802.3az compliant
- Time-based PoE (PoE models excluding DGS1100-08P)
Advanced Features
- IGMP Snooping
- Bandwidth Control
- IEEE 802.1Q VLAN
traffic segregation
- Port-based VLAN
- IEEE 802.1p QoS
- Surveillance VLAN
- Voice VLAN
Management Features
- Client-based utility or web-based GUI
- Built-in SNMP MIB1 Surveillance Features (MP/MPP Models)
- Full PoE budget and ultra-high power ports
- Per-port 6 kV surge protection
