| Managed PoE Switches
| TENDA TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable

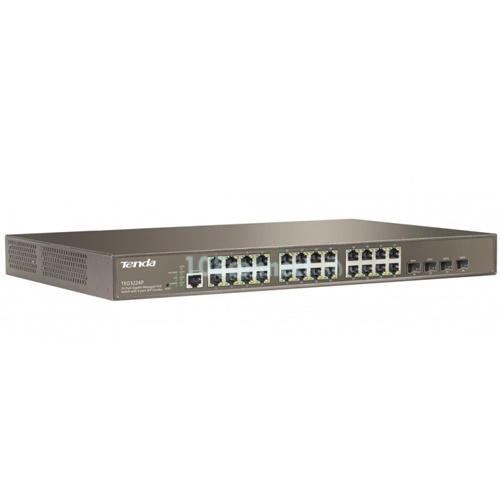

TENDA TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable
เพิ่มเมื่อ: 2018-09-13 12:28:00.0
แก้ไขล่าสุด: 2019-07-30 12:33:26.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable(สินค้ารับประกัน 5 ปี)
TENDA TEG3224P
TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable
- Support the whole network management, prevent ARP virus, IP/MAC deceit and Dos attacks
802.1 X and MAC authentication
- 24 Gigabit+ 4 SFP can offer flexible port combination. PoE dynamic power supply
port output power automatically matches PD equipment, it is energy saving and secured
- Support VCT cable diagnosis, it can locate fault point of illness faster
more efficient to save time.
Specifications
Standard&Protocol
- IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at
Layer 2 switch
- All ports support linear forward
- Packet forwarding speed: 35.7Mpps
MTBF
- ≥100 thousand hours
Store & Forward
- Yes
Switch Fabric
- 56Gbit/s
MAC Address Table
- 8K MAC
- Support set port MAC address learning maximum number

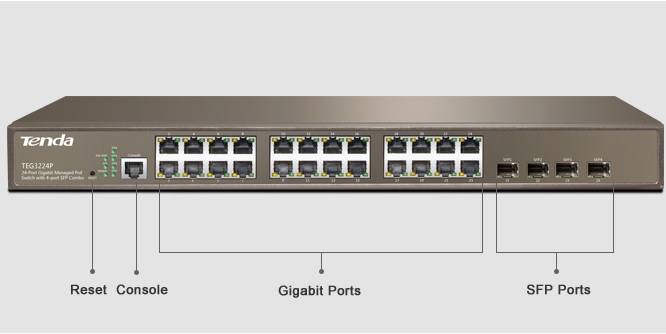

Fixed Port
- 24 10/100/1000Base-T ports (Data/PoE)
- 4 10/100/1000 Base-X SFP ports ( Combo)
Optional Module
- SFP optical fiber module with single port
Power supply module
- Supply 24 RJ-45 802.3af（15.4W）/12 RJ-45 802.3at（30W）
- Power Pin Assignment: 1/2(+),3/6(-)
Input Voltage
- AC：176V~264V
- 50/60Hz
Dimension
- 440*284*44 (W x D x H mm)
Weight
- <5kg
Consumption
- Power consumption：<450W
- PoE Power Budget：370 Watts
Operation Temperature
- 0～45 Degree C
Operating Humidity
- 10%～95%(Non-condensing)
Port Trunking
- Support LACP
- Support manual polymerization
- 12 groups of port trunk support，up to 16 GE port per trunk group
PoE supply management
- PoE port setting and power priority supply setting
- PoE over temperature protection
- Smart graphical management and detection of PD equipment, (priority, port state, power allocation
PD equipment state) intelligent management power of PD equipment
Layer 2 ring network protocol
- Conform to STP/RSTP/MSTP
- Support equipment to prevent the loop
VLAN
- Support port-based VLAN（4K）、protocol-based VLAN Compliant with Voice VLAN
- VLAN Mapping、VLAN VPN（QinQ），flexible QinQ
DHCP
- DHCP Snooping、DHCP Relay/Client/Server
- DHCP Snooping Option82/DHCP Relay Option82
Multicast
- Support IGMP Snooping、multicast VLAN、IGMP V1/V2、PIM-SM/ PIM-DM/MSDP
Mirroring
- N:1 port mirror、flow mirror、RSPAN（Remote port mirror）
ACL
- Support L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address
the destination MAC address, the source IP address, destination IP address, TCP/UDP port
number and protocol type VLAN and illegal frame filtering Support based on
QoS
- Support for the rate at which port to receive a message and send a message to limit the speed
- Support message to redirect, the function of the CAR
- Support 8 port output queue
- Support port queue scheduling (SP,WRR)
- Support port queue scheduling (SP,WRR)

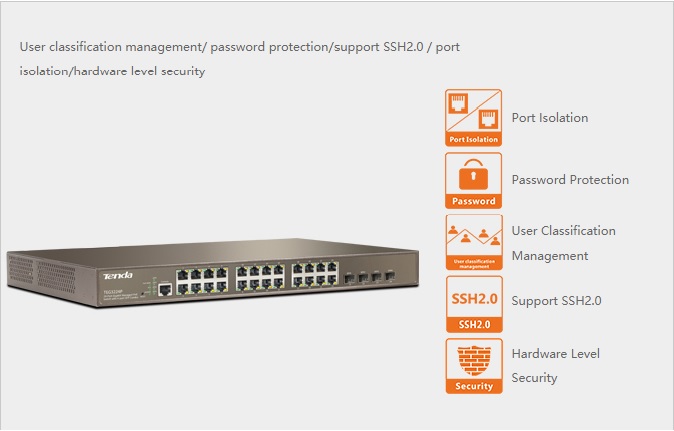

Security
- User classification management,and password protection
- IEEE 802.1 X authentication
- Centralized MAC address authentication
- Protection of the ARP,IP source address intrusion detection
- Support SSH2.0, port isolation
Management
- XModem/FTP/TFTP load to upgrade
- Support command line interface (CLI), Telnet, the configurations of the Console port
- Support the SNMP v1 / v2, v3 and WEB network management
- Support RMON (Remote Monitoring) 1,2,3,9 group MIB
- Support system logs, hierarchic
