| WiFi Access Point Outdoor
| TOTOLINK CP900 5GHz Wireless Outdoor AP/Client MU-MIMO technology
TOTOLINK CP900 5GHz Wireless Outdoor AP/Client MU-MIMO technology
เพิ่มเมื่อ: 2019-10-09 13:41:17.0
แก้ไขล่าสุด: 2021-11-23 14:53:35.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comCP900 5GHz Wireless Outdoor AP/Client Delivers up to 867Mbps(สินค้ารับประกัน 5ปี)

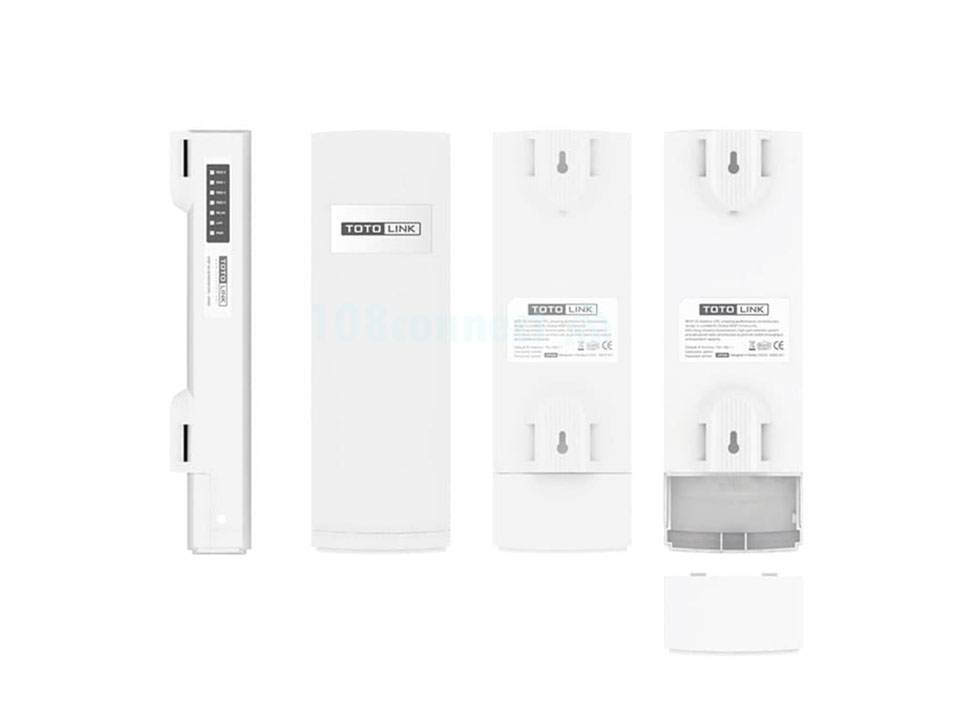

TOTOLINK CP900
CP900 5GHz Wireless Outdoor AP/Client Delivers up to 867Mbps MU-MIMO technology
- Supports 802.11ac Wave2 technology with Qualcomm Atheros chipsets.
- Delivers up to 867Mbps wireless speeds on 5G band.
- MU-MIMO technology allows multiple devices data transfer simultaneously.
- Built-in 12dBi dual polarized antennas ensure reliable Wi-Fi connection.
- Watchdog hardware design for easy troubleshooting automatically.
- Passive PoE power supply with up to 100m power transmission.
- IP65 level dustproof and waterproof for professional structural design.
- 4KV lighting proof and 15KV ESD is resilient to all harsh environments.
- 4 intelligent LED indicators intuitively show signal strength.
- Provides AP/Client/Repeater/WISP working modes.
Standards
- IEEE 802.11ac n/a
Frequency Range
- 5.15~5.85GHz
WiFi Speed
- AC1200
Data Rate
- Up to 867Mbps
EIRP
- < 20dBm
Reception Sensitivity
- TX 802.11a/n(HT20)/n(HT40) /ac(VHT80)= 24/22/22/20dBm
- RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm（MP)
802.11a/n(HT20)/n(HT40)/ac=-76/-72/-69/-59dBm（ES
Interface
- 1 *100BaseTX (Auto MDI/MDIX) LAN Port
- 1 *GND SMA connector
Operation Mode
- AP Mode
- Repeater Mode
- Client Mode
- WISP Mode
Network
- LAN Setup
- Static DHCP Setup
- WAN Setup
Wireless Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Wireless Mode
- Basic Setting, Security Setting, Advanced Setting, Multiple APs,
- MAC Authentication, WDS, WPS, Repeater
Reliability
- 6KV Lightning Protection
- 15KV ESD Protection
- IP65 level dustproof and waterproof
Circuit
- Watch-dog circuit
Antenna
- Built-in 12dBi dual polarized antennas
Button
- 1 *RESET Button
Dimensions
- 9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm)
Power Supply
- 24V Passive PoE
LEDs
- 1 *Power, 1 *LAN, 4 *Signal Strength
Package Contents
- CP900 Wireless CPE *1
- PoE Box *1
- Power Adapter *1
- Ethernet Cable *1
- Strips *2
- Quick Installation Guide *1
