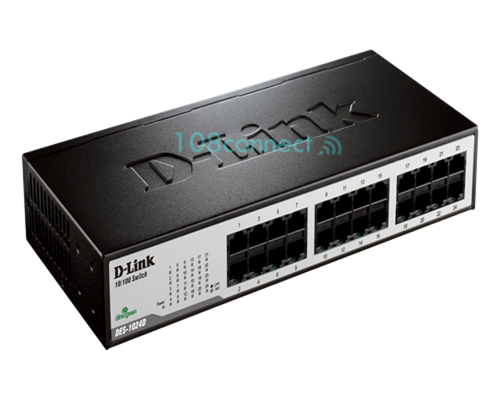

D-LINK DES-1024D 24-Port Fast Ethernet Unmanaged Desktop
เพิ่มเมื่อ: 2018-01-06 11:40:34.0
แก้ไขล่าสุด: 2019-05-05 18:59:09.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comDES-1024D 24-Port Fast Ethernet Unmanaged Desktop Switch(สินค้ารับประกัน ตลอดอายุการใช้งาน)
D-LINK DES-1024D
DES-1024D 24-Port Fast Ethernet Unmanaged Desktop
- Inexpensive Fast Ethernet solution for SOHO/SMB
- Auto MDI/MDIX crossover for all ports
- Store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Plug-and-play installation
Switching Fabric
- 4.8 Gbps
Standards
- IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay Auto-Negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3az EEE function
Protocol
- CSMA/CD
Data Transfer Rates
Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Number of Ports
- 24 10/100Mbps Fast Ethernet ports
Topology
- Star
Network Cables
10BASE-T:
- UTP CAT 3/4/5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port:
- Link/Activity
Per device:
- Power
Transmission Method
- Store-and-forward
MAC Address Table
- 8K entries per device
MAC Address Learning
- Automatic update
Packet Filtering /Forwarding Rates (half duplex)
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
RAM Buffer
- 256 Bytes (2M bits)
Power Input
- 100~240 V AC 50/60 Hz internal universal power supply
Power Consumption
Power On (Standby):
- DC input: 1.18 Watts
- AC input: 2.09 Watts
Max.:
- DC input: 2.72 Watts
- AC input: 4.14 Watts
Heat Dissipation
Power On (Standby):
- AC input: 7.13 BTU/h
Maximum:
- AC input: 14.13 BTU/h
MTBF
- 2,058,943 hours
Operating Temperature
- 0 ˚ to 40 ˚C (32 ˚ to 104 ˚F)
Storage Temperature
- -10 ˚ to 70 ˚C (14 ˚ to 158 ˚F)
Operating Humidity
- 10% to 90% RH non-condensing
Storage Humidity
- 5% to 90% RH non-condensing
Dimensions (W x D x H)
- 280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)
