| EDIMAX CAP1300 AC1300 400Mbps + 867Mbps Office 1-2-3 Wi-Fi System
EDIMAX CAP1300 AC1300 400Mbps + 867Mbps Office 1-2-3 Wi-Fi System
เพิ่มเมื่อ: 2020-02-25 18:15:15.0
แก้ไขล่าสุด: 2021-10-08 18:10:39.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comCAP1300 AC1300 400Mbps + 867Mbps Office 1-2-3 Wi-Fi System Concurrent Clients Up to 100 Per Radio(สินค้ารับประกัน 2 ปี)
EDIMAX CAP1300
CAP1300 AC1300 400 + 867Mbps Office 1-2-3 Wi-Fi System
Concurrent Clients Up to 100 Per Radio
- Dedicated Office Wi-Fi: Designed for high density offices for 100 employees or less.
- Easy Setup, Self-Managed & Pre-Configured Wi-Fi System: Three pre-configured
APs with self-managed functions for easy setup.
- Secure & Separated Wi-Fi Networks: Three separate Wi-Fi networks by default – office, guest
and Wi-Fi device – secure Wi-Fi network.
- Maximized Cost Efficiency: No need for server or controller software and no extra license fee.

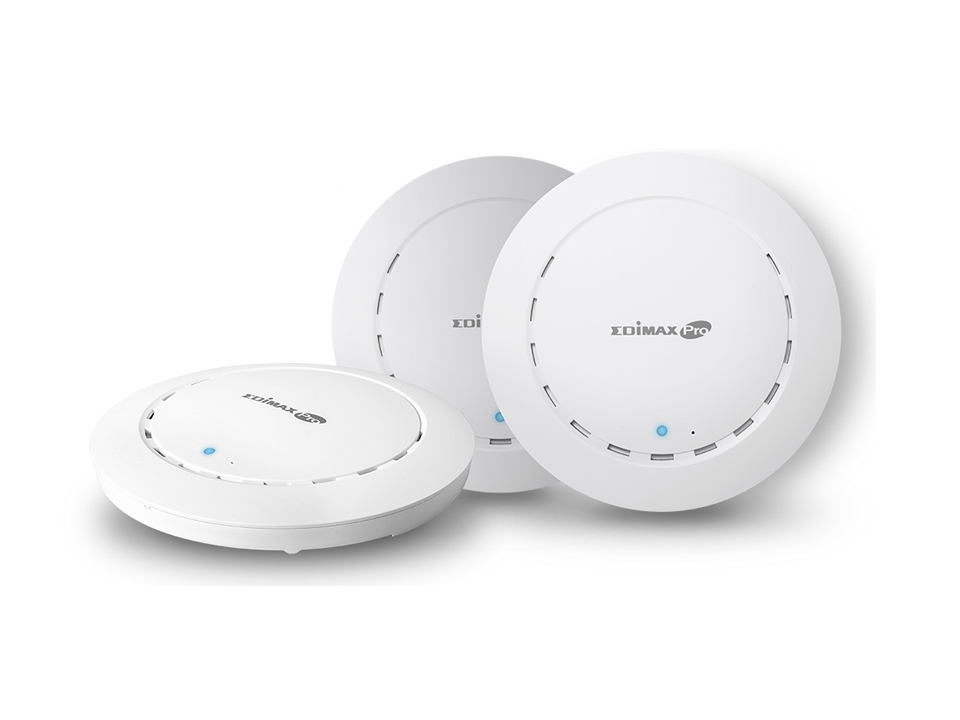

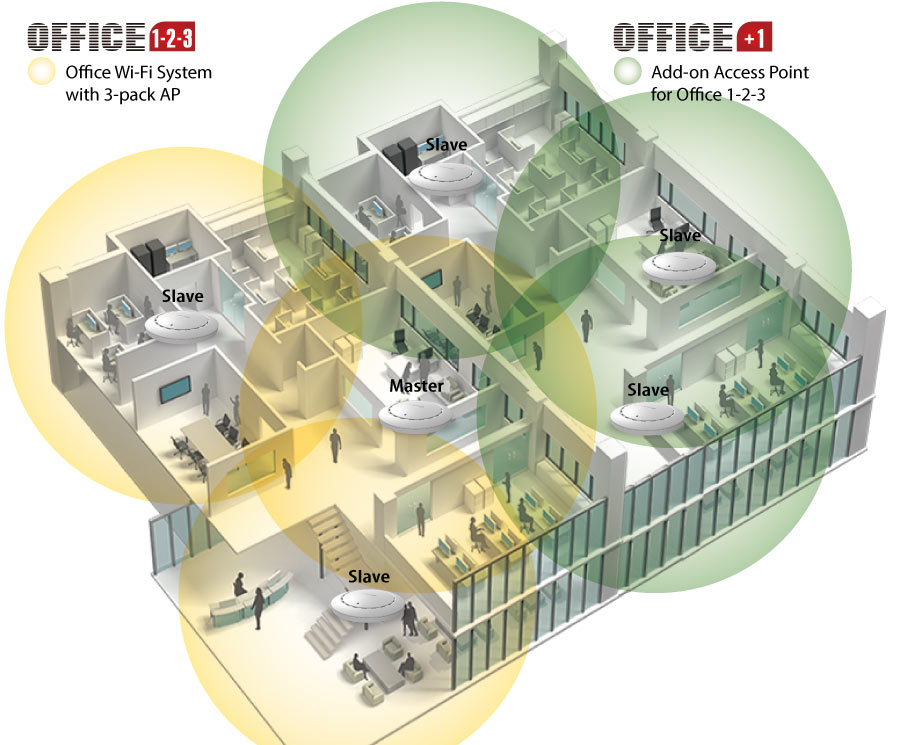

- Expandable Wi-Fi System: Includes three AC1300 ceiling mount APs and is expandable with CAP1300
Office +1 AP or OAP1300 Office +1 AP, up to a total of 16 APs.
- Flexible PoE Deployment: Supports IEEE 802.3at and IEEE 802.3af PoE for flexible network deployment.
- High-Speed 802.11ac Wave 2 & Efficient MU-MIMO: Serves multiple devices simultaneously to enhance
connected devices capacity.
- High Performance Wi-Fi: Fearues with Beamforming AirTime Fairness (ATF), Band Steering.
- Built-In RADIUS Server: Manages up to 256 user accounts.

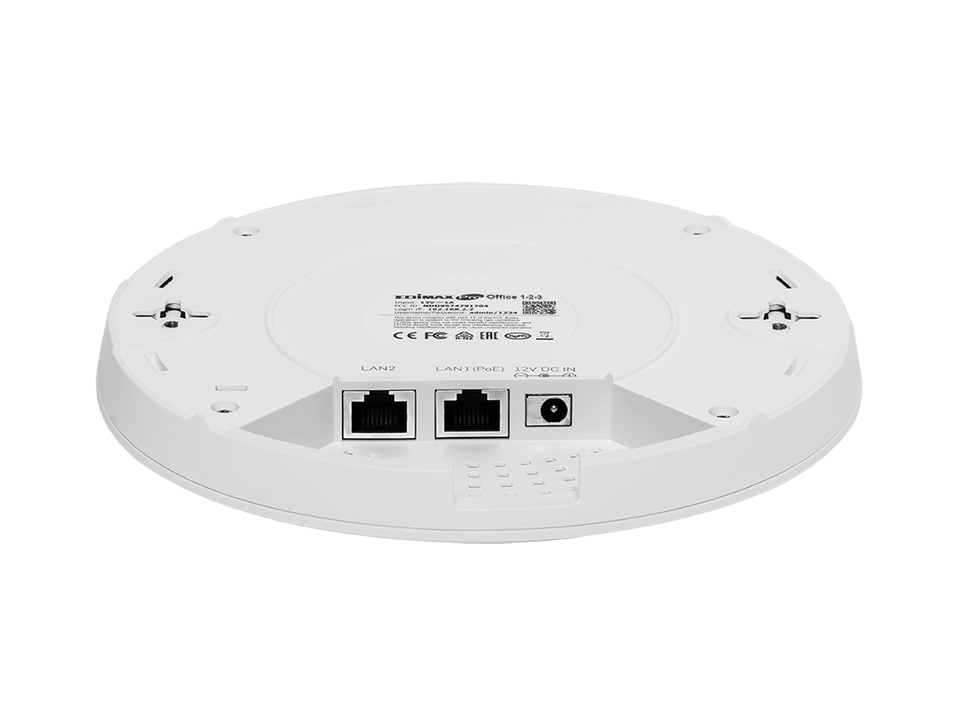

LAN Interface
- Giga x 2
PoE
- LAN1: PoE in
Antenna
- Type: 4 x Built-In PIFA
- (2 x 2.4GHz, 2 x 5GHz) /
- Gain: 4dBi (2.4GHz), 5dBi (5GHz) Max.
Power
- DC: 12V / 1A
- 802.3at (PoE Injector Optional)
Flash / DRAM
- 32MB / 256MB
Dimensions
- 17.6 (D) x 3.2 (H) cm
Weight
- 342g
Power Consumption (Full Loading)
- 11W
Mounting
- Ceiling
Reset
- Reset
LED Indicator
1. Power LED
2. Diag LED
Environmental Conditions
- Operating Temperature: 0°C (32°F) to 40°C (104°F)
- Operating Humidity: 90% or Less
Power Saving
- 802.3az
Internal Buzzer
- Y
Housing
- UL94-5VB Flammability Rating
Others
- Kensington Security Slot & Ceiling/Wall Mount Holes
Standard
- 802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios
- 2
Receiver Sensitivity
- ≤ -93Bm
Certification
- CE / FCC
Band Steering
- Y
AirTime Fariness
- Y
Beamforming
- Y
Number of SSIDs
- 3 Default SSIDs (Office, Guest, Device)
total up to 32 SSIDs (16 (2.4GHz) + 16 (5GHz))
Maximum Data Speed
- 400 + 867Mbps
Concurrent Clients
- Up to 100 Per Radio
