MERCUSYS MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

 เพิ่มเมื่อ: 2023-05-06 13:21:28.0
 แก้ไขล่าสุด: 2023-11-07 17:10:43.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:

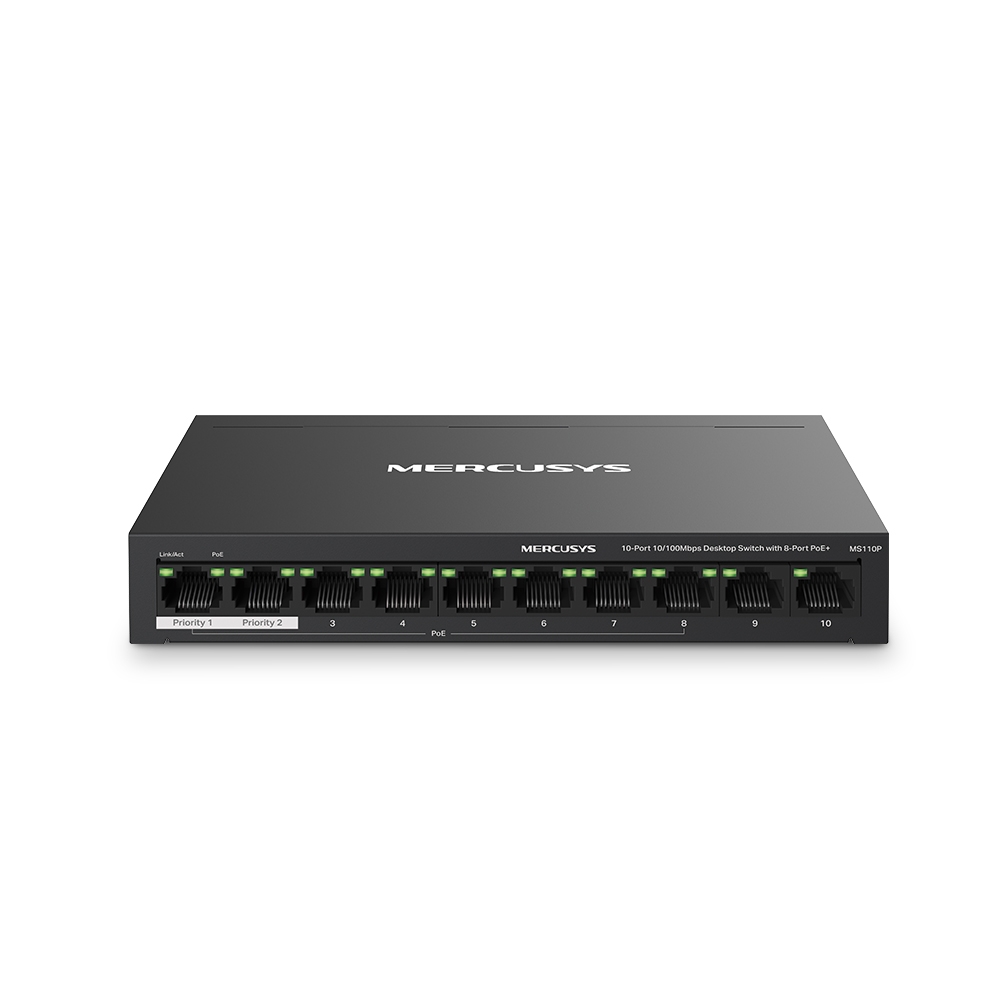

MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
1290.00 บาท

 MERCUSYS MS110P

MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

10 Ports : 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
Two Cables in One : With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+ : Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports : MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

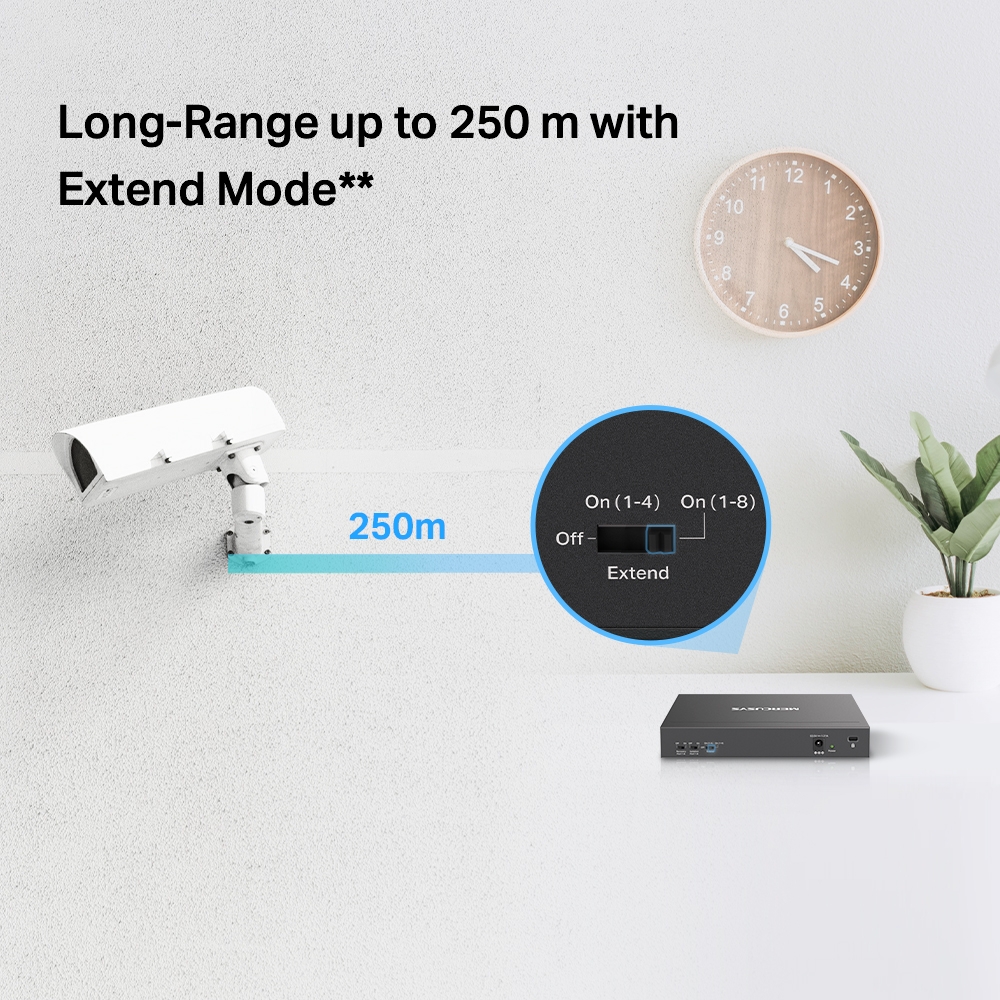

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

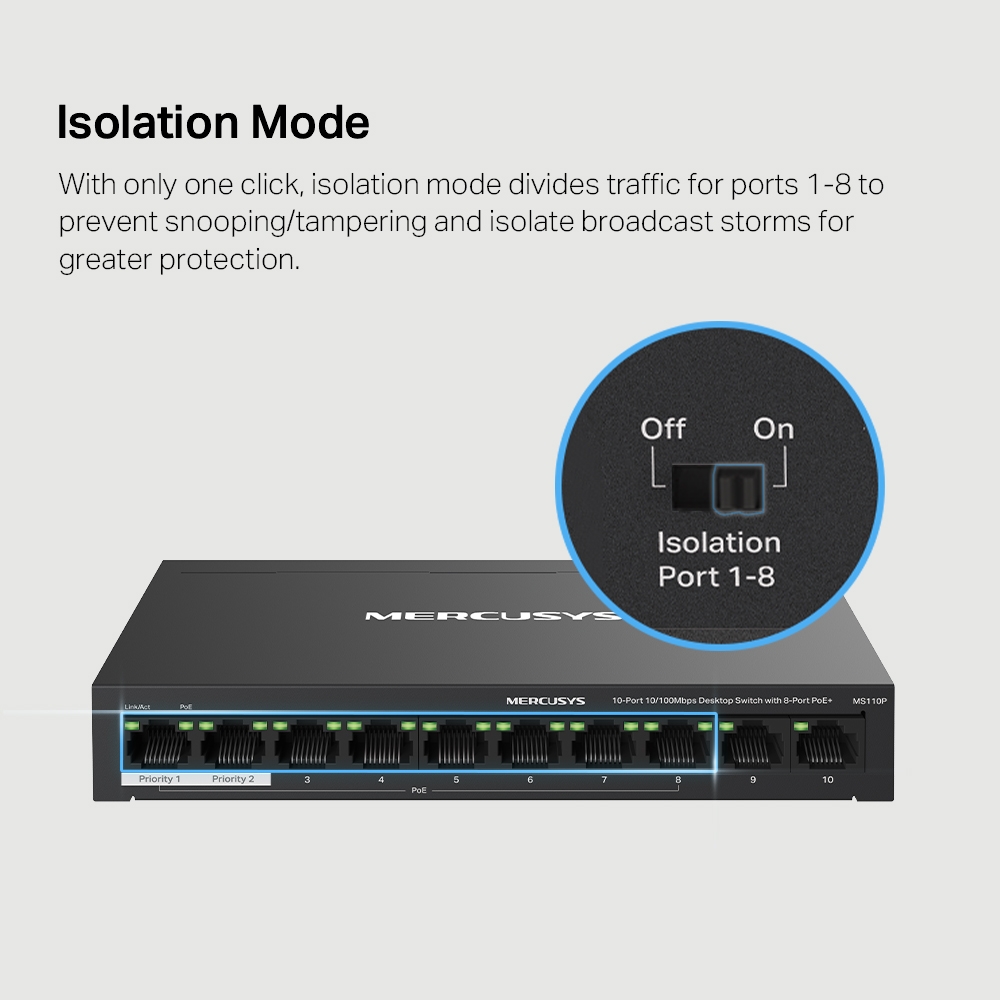

Isolation Mode : One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices : Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing : Allows for efficient heat dissipation and long network life
Plug and Play : Simple to use and saves time and effort
PoE Auto Recovery : Automatically reboots your dropped or unresponsive PoE-powered devices



 Specifications

Interfaces : 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

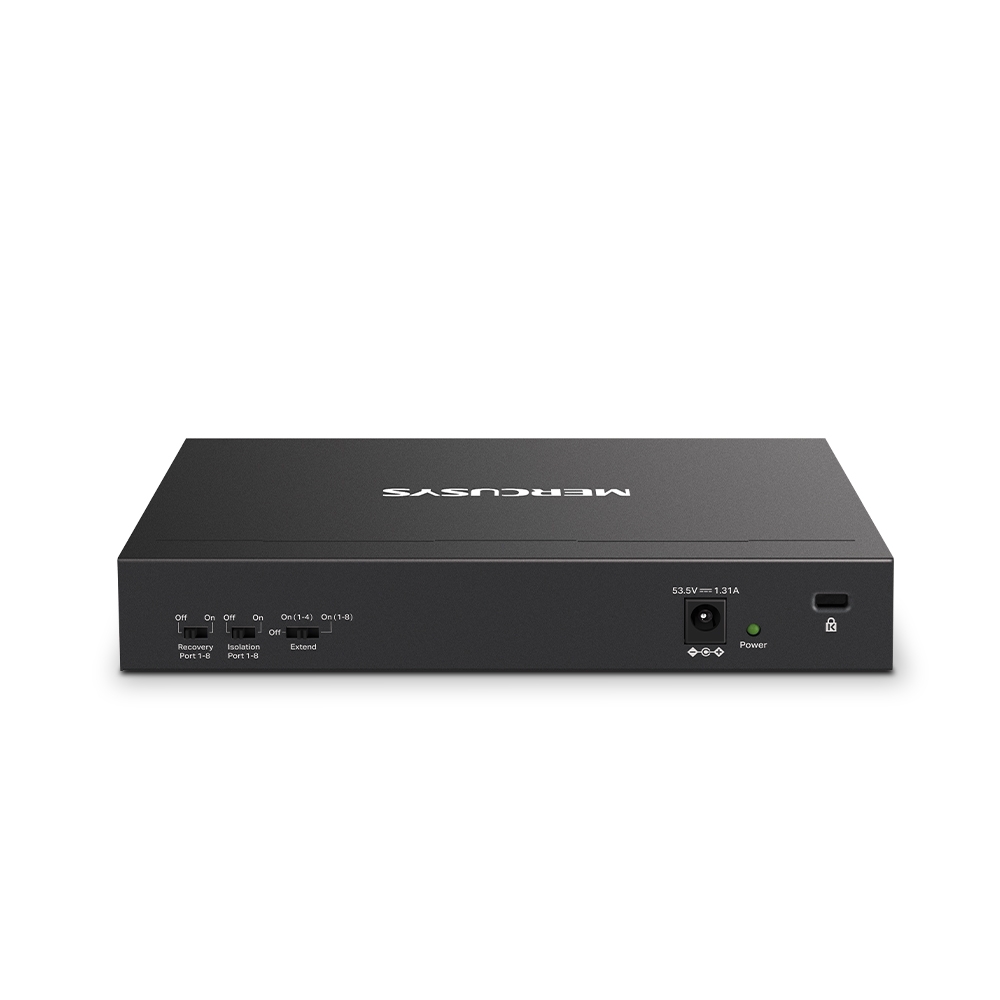

External Power Supply : External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols : IEEE 802.3x Flow Control

Data Rates :
• 10/100 Mbps at Half Duplex
• 20/200 Mbps at Full Duplex

Jumbo Frame :  2 KB

Mac Address Table : 2K

Max Power Consumption :
• 2.96W(220 V / 50 Hz, no PD connected)

• 77.52W(220 V / 50 Hz, with 65W PD connected)

Max Power Consumption :

• 10.064 BTH/h (no PD connected)

• 263.568 BTH/h(with 65W PD connected)

PoE Ports :
• RJ45

• Standard: Compliant with 802.3 af/at Powered Devices
• PoE Ports: Port 1- Port 8
• PoE Power Budget: 65 W

Package Contents :
• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide
