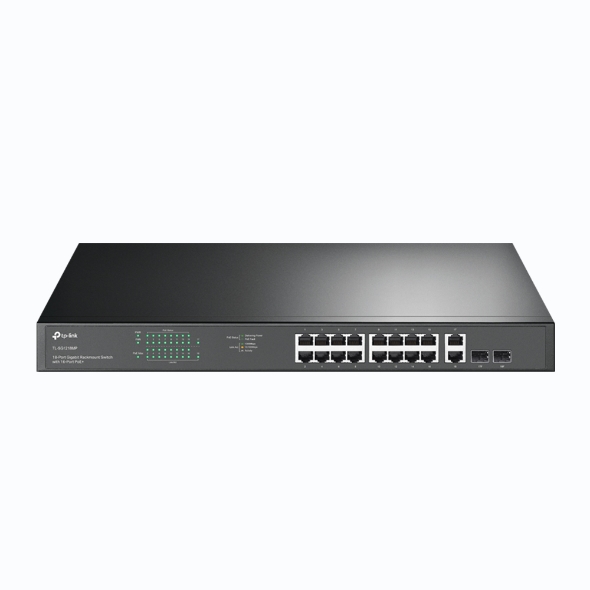

TP-LINK TL-SG1218MP 18-Port Gigabit Rackmount Switch

 เพิ่มเมื่อ: 2023-02-12 16:33:33.0
 แก้ไขล่าสุด: 2023-11-15 18:38:31.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
ฮับสวิตซ์จ่ายไฟ TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots(รับประกัน limited life)
5790.00 บาท

ส่งอีเมลล์ให้เพื่อน

  TP-LINK TL-SG1218MP

TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

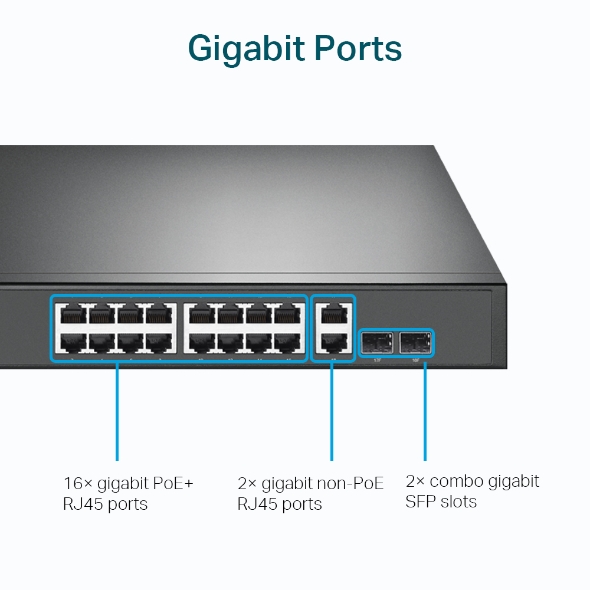

- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

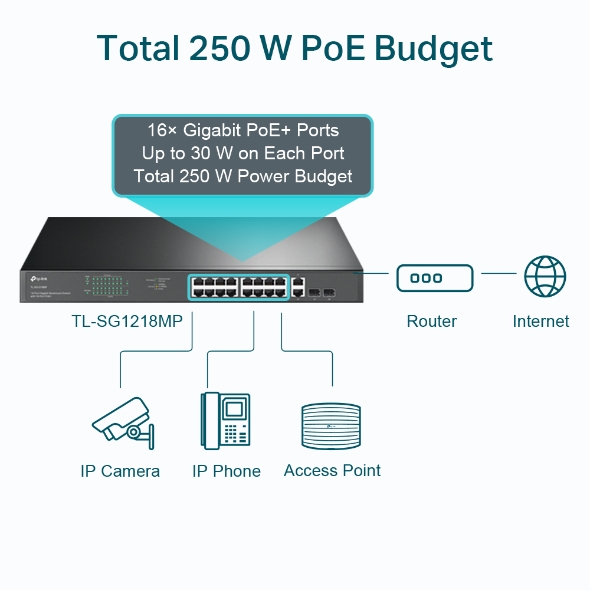

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Working with IEEE 802.3af/at compliant PDs

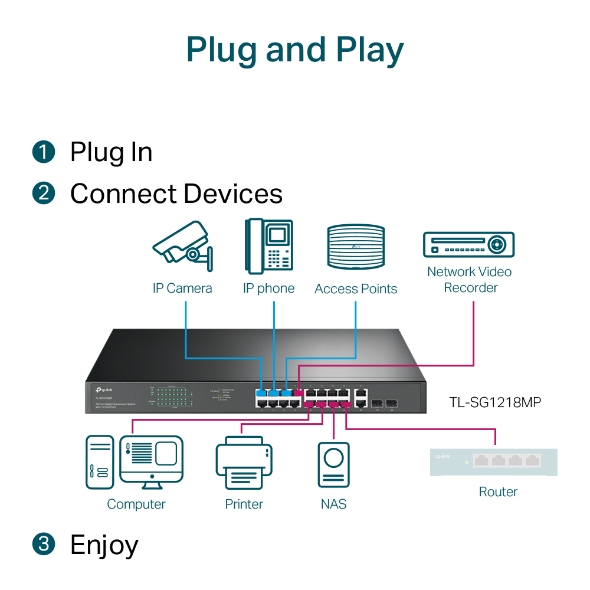

- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)



HARDWARE FEATURES

Standards and Protocols

- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af,

- IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

- 16× PoE+ gigabit RJ45 ports
- 2× gigabit non-PoE RJ45 ports
- 2× combo gigabit SFP slots

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF

Fan Quantity

- 2

Physical Security Lock

- Yes

Power Supply

- 100–240 VAC, 50/60 Hz

PoE+ Ports(RJ45)

- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1–16
- PoE Power Budget: 250 W

Dimensions ( W x D x H )

- 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting

- Rack Mountable

Max Power Consumption

- 21.4 W (220/50 Hz. no PD connected)
- 286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation

- 72.97 BTU/h (no PD connected)
- 977.44 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity

- 36 Gbps

Packet Forwarding Rate

- 26.78 Mbps

MAC Address Table

- 8K

Packet Buffer Memory

- 4.1 Mbit

Advanced Functions

- Compatible With IEEE 802.3af/at Compliant PDs
- 802.1p/DHCP QoS
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame

- 10 KB
