TP-LINK TL-SG1210P 10-Port Gigabit+8-Port PoE+

 เพิ่มเมื่อ: 2023-02-12 15:05:56.0
 แก้ไขล่าสุด: 2023-11-09 13:02:14.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
ฮับสวิตซ์จ่ายไฟ TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ รับประกัน limited lifetime
2790.00 บาท

 TP-LINK TL-SG1210P

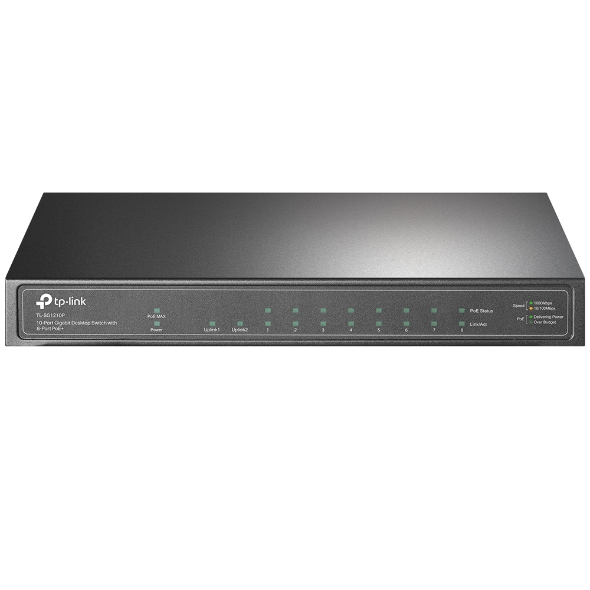

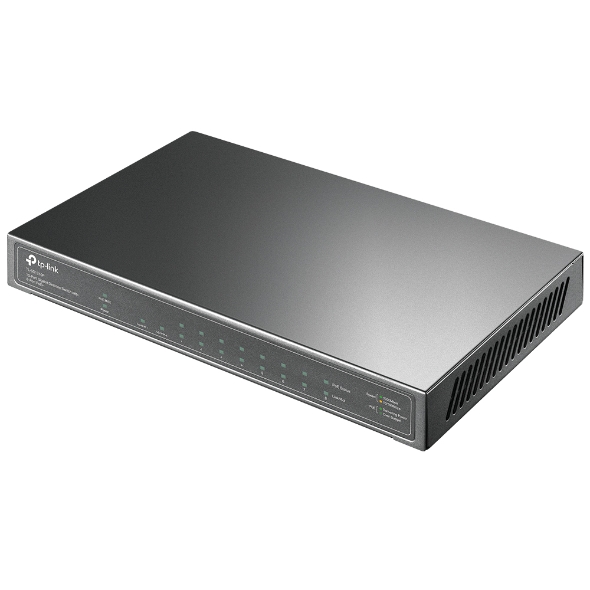

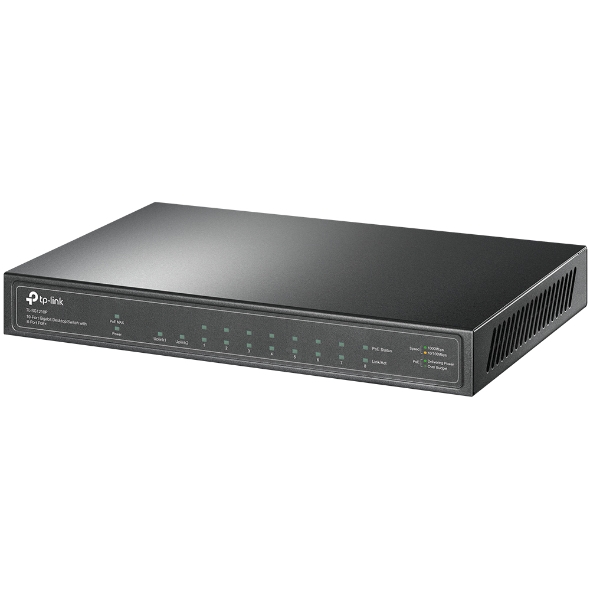

TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed



  HARDWARE FEATURES

Interface

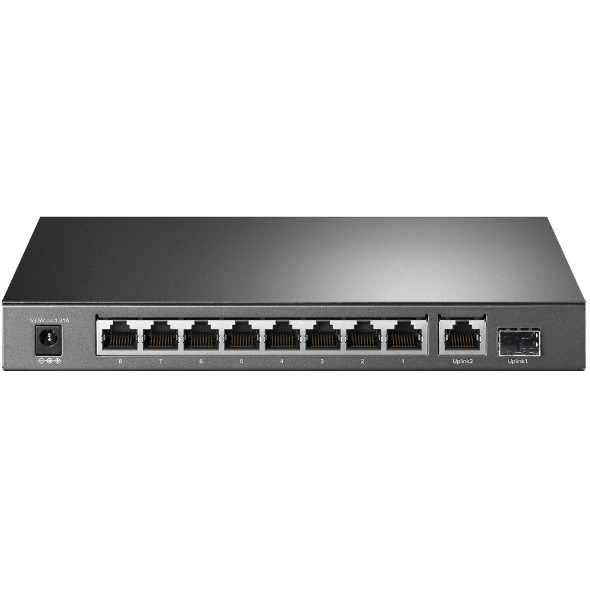

- 8 PoE+ 10/100/1000Mbps RJ45 Ports
- 1 10/100/1000Mbps RJ45 Port
-1 Gigabit SFP Slot

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF

Fan Quantity : Fanless

Physical Security Lock : Yes

Power Supply : External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate : 14.88 Mpps

PoE+ Ports(RJ45)

- Standard: 802.3at/802.3af compliant
- PoE Ports: Port1- Port 8
- PoE Power Budget: 63W

Mac Address Table : 4K

Jumbo Frame : 16 KB

Switching Capacity : 20 Gbps

Dimensions ( W x D x H ) : 209 × 126 × 26 mm

Max Power Consumption

- 7.11 W (220/50Hz. no PD connected)
- 78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation

- 24.25 BTU/h (no PD connected)
- 266.42 BTU/h (with 63W PD connected)

 SOFTWARE FEATURES

Advanced Features

- Compatible With IEEE 802.3af/at Compliant PDs
- EEE802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping

Transmission Method : Store-And-Forward
