| TP-LINK TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports
TP-LINK TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports
เพิ่มเมื่อ: 2019-09-13 18:15:14.0
แก้ไขล่าสุด: 2022-05-30 15:14:49.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports, 1U 13-inch rack-mountable steel case(สินค้ารับประกันตลอดอายุการใช้งาน)
TP-LINK TL-SG1008MP

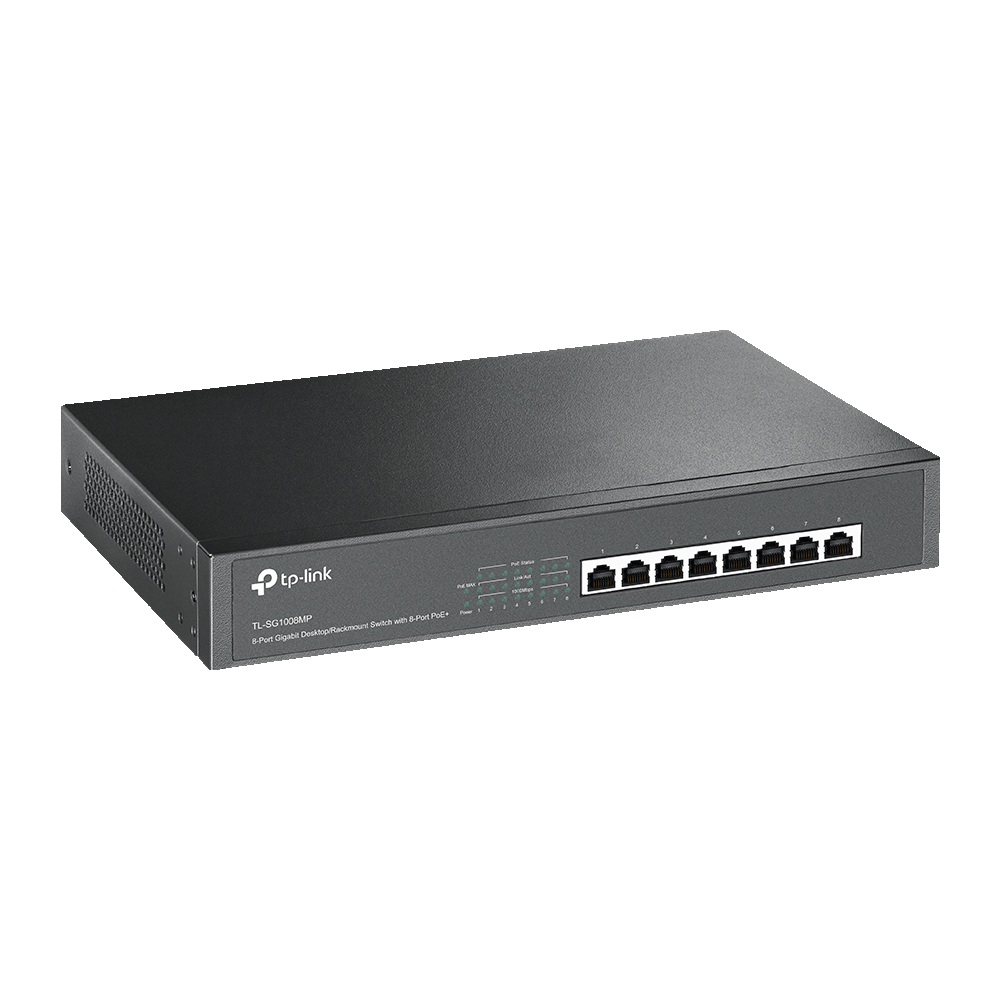

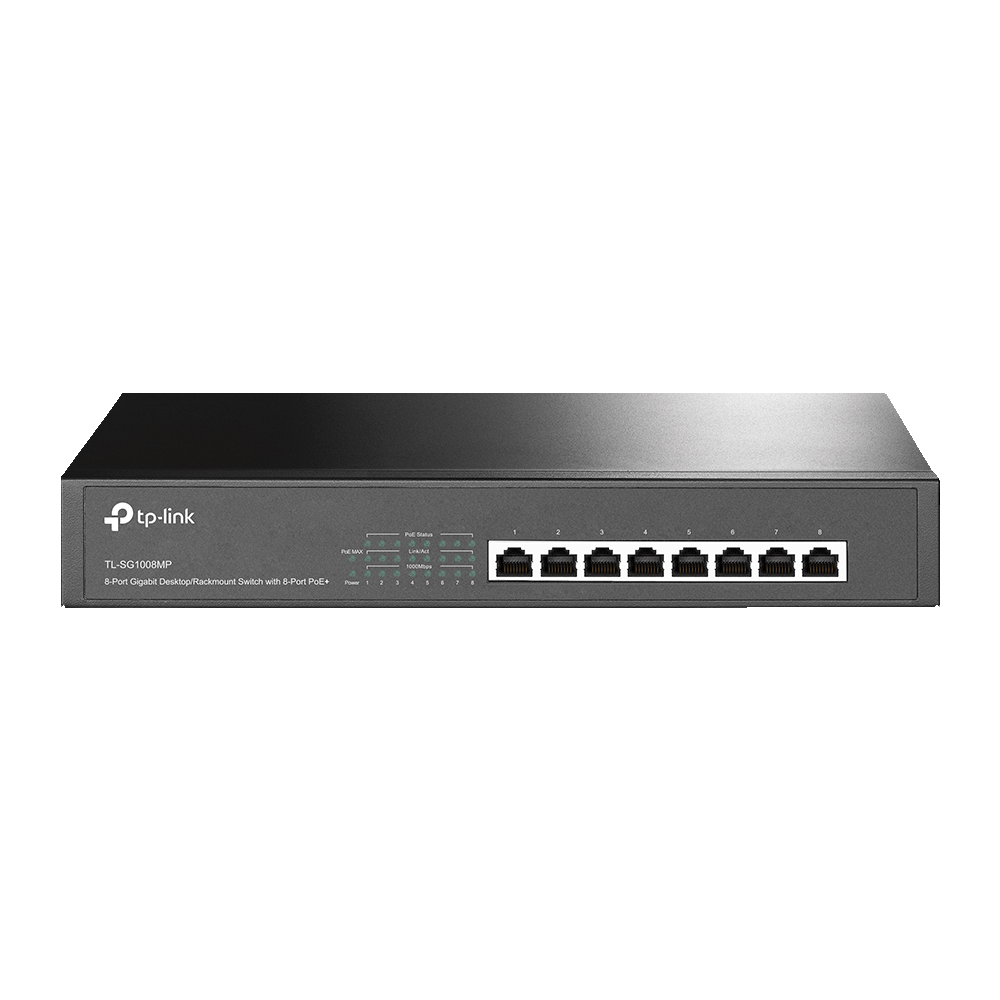

TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports, 1U 13-inch rack-mountable steel case
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption by up to 75%*
- Supports PoE+ standard with total power budget of 126W and up to 30W per port
- Plug and play design, no configuration required
HARDWARE FEATURES
Interface
- 8 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
- 1
Physical Security Lock
- No

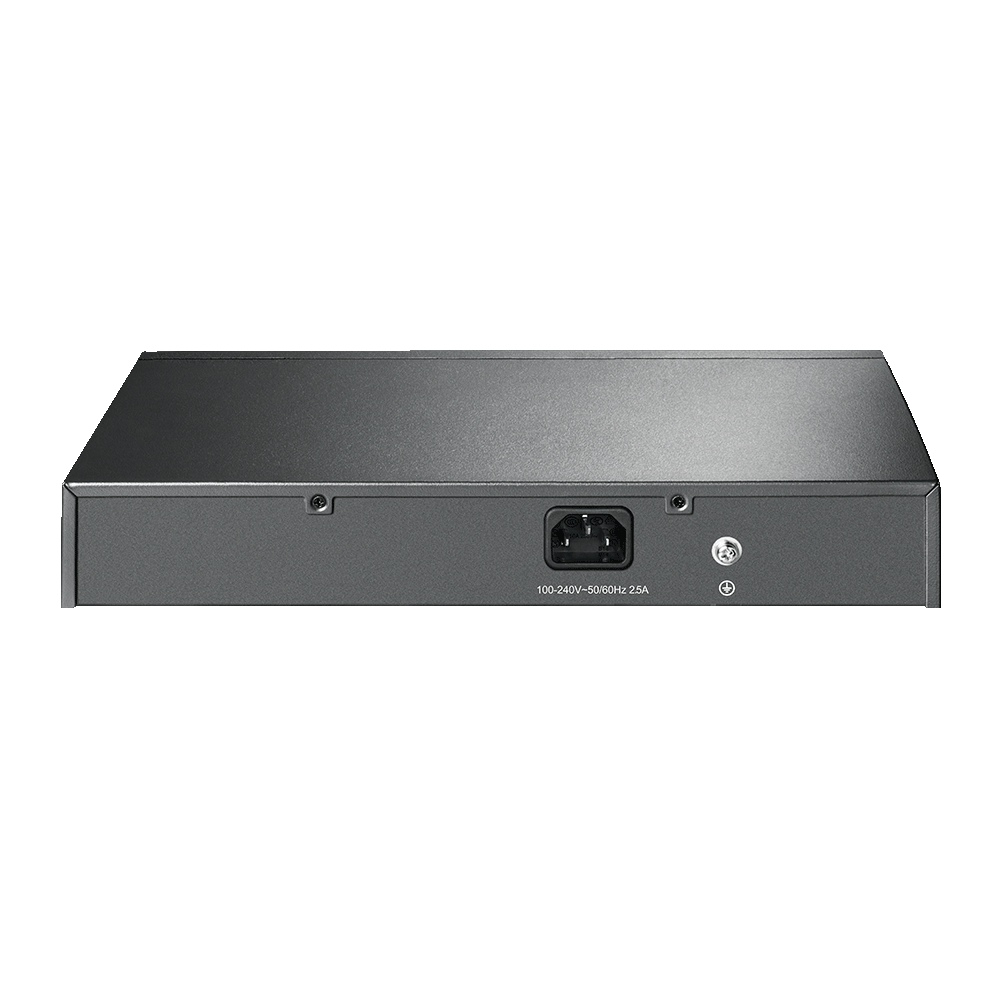

Power Supply
- 100-240VAC, 50/60Hz
PoE+ Ports(RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 8 Ports
- Power Supply: 126W
Backbound Bandwidth
- 16Gbps
Mac Address Table
- 4K
Buffer Size
- 1.5Mbits
Dimensions ( W x D x H )
- 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting
- Rack Mountable
Max Power Consumption
- 9.89W(220V/50Hz. no PD connected)
- 140.67W(110V/60Hz. with 126W PD connected)
Max Heat Dissipation
- 33.74BTU/h(no PD connected)
- 492.56BTU/h(with 126W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method
- Store-And-Forward
OTHERS
Certification
- FCC, CE, RoHS
Package Contents
- TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
